Live Sound - Recording - Rental

Tools to perfect our work

DiGiCo live audio mixing systems, recording and peripherals are the tool packages of our choice. We also provide them to other sound engineers and artists and help to perfect their work.

Most requested systems in live sound

Firstly, DiGiCo systems delivers great performance, processing power and sound clarity. Mix and record live productions of any size with ease. Also SoundGrid-Waves plug-in support are features this plattform.. Secondly, DiGiCo is reliable through any live production. Artists and engineers rely on to present the best show possible. Therefore they are one of the most requested live mixing systems in the world.
Above all, with our work in live sound we do understand the special demands of live audio with the importance of high-quality, and reliable audio capture.

Touring Package

Currently we do our live concerts and tours with these packages
DiGiCo SD5 touring package

For our touring applications we build compact rack-mounted packages.

          • All peripherals comes pre-cabled and mounted in a shock-proof double-wide 2x 19“ rack.
          • Connectors to plug daly have been laid to the front in order to keep all clear and accelerated.
digico-sd5

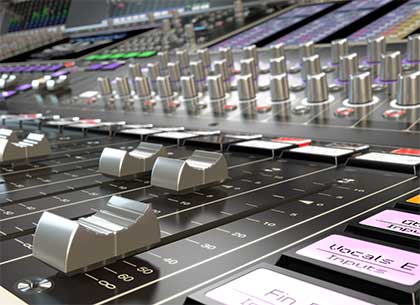

DiGiCo SD5 Core-2 Mixing Console.

HMA / Waves / Opto / 37 Faders / 253 Input Channels / 128 Busses / 24x Matrix / 3x MADI

        • redundant PSUs
        • Software V1619
        • SD5 Flight Case 160x120x60cm
SD-Rack

SD-Rack

10U rack mounted I/O with 14 card module slots – 56 inputs and 56 outputs / redundant PSUs.

          • 7 Input Card (56 Mic Input) 24bit.
          • 6 Output Card (48Analog Output) 24bit.
          • 1 AES Output Card ( 8x AES Output ).
          • MADI.
          • HMA Optics.
SG-Server-One
waves

WAVES SuperRack SoundGrid with DiGiCo Consoles.

Integration of WAVES SoundGrid processing remote controlled from console

          • WAVES SoundGrid Extreme Server(s), DSP processing unit(s).
          • WAVES Axis One Computer, optimized for running Waves applications.
          • WAVES SoundGrid SuperRack Software / WAVES Plug In Bundle ( Mercury, Studio Classics, Abbey Road )
          • DELL P2418HT 23,8″ full HD video touch display
HMA optocore

System Cabling / Optocore Loop

          • HMA or FiberFox 50/125μm EBC1502 TD-02G50-OM3-MIL.
          • Multimode 50/125 μm.
          • 150 meter.

Recording Systems

DiGiGrid MGB

MADI DiGiGrid MGB

MADI-enabled device to a Waves SoundGrid network for plugin processing and/or DAW playback and recording.

          • DiGiGrid MGB MADI-to-SoundGrid interface
          • MADI BNC connections
          • 128-channel I/O @ 48 kHz
          • 64-channel I/O @ 96 kHz
protools_macbpro

48/96KHz – MADI Recording in SoundGrid

          • CTO Apple MacBook Pro 15″ 2,3GHz Intel Core i7, 16GB DDR3
            250GB SSD, 1TB HDD 7200rpm
          • DAW Reaper
apple macPro xmac-server

48/96KHz – MADI Recording in SoundGrid

          • Apple MacPro 6.1  6-Core 3,5 GHz, 32 GB RAM, 2xD500.
            Sonnet xMacPro Server ( Thunderbolt PCIe Expansion System / Rack Mount Enclosure ).
            1 Recording Drive Samsung Pro860 2TB SSD / 3 Storage Drives 3,5″ 2TB HDD 7200rpm.
          • DAW Reaper
apple macPro xmac-server

48/96KHz – MADI Recording with ProTools

          • Apple MacPro 6.1  6-Core 3,5 GHz, 32 GB RAM, 2xD500.
            Sonnet xMacPro Server ( Thunderbolt PCIe Expansion System / Rack Mount Enclosure ).
            1 Recording Drive Samsung Pro860 2TB SSD / 3 Storage Drives 3,5″ 2TB HDD 7200rpm.
          • ProTools Ultimate / 2021 Software
          • 1 iLok with all licenses.
Thunderbolt HD-MADI

MADI 64-I/O Interface

          • 1 Avid HD MADI 64-channel I/O digital audio interface
          • 1 Thunderbolt HD Native Core
          • DigiLink Cables
Live Recording Venue S6L Protools

Shock-proof 19“ ProTools work-station for touring.

Recorder, peripherals, monitor and keyboard are pre-cabled and rack-mounted.
Designed for use as a Recording and Virtual Soundcheck System for working with ProTools in MADI-enabled environments.

          • 19″ Rack, shock mount, with slide doors + top lid, 60x100x70cm.
          • DELL 22″ HD video display.
          • USB Apple ProTools custom Keyboard / Logitech ERGO Trackball.
          • Power, Network, and MADI-BNC cables.

Audio & Pheriperals

System Controller, Measurement, Insert & Master Bus Processing, other audio

Smaart

System Measurement Acoustic Analysis Real Time Tool (SMAART).

Industry Leading, FFT-Based Audio Analysis Software Measurement Package.

          • Apple Mac Mini 2,4 GHz Intel Core 2 Duo.
          • DELL 22″ HD video display / Apple wireless keyboard / wireless Logitech ERGO Trackball.
          • Focusrite Scarlett 2i2 USB audio interface or Focusrite Saffire PRO40 audio interface.
          • iSEMcon EMX-7150 measurement microphone + iSEMcon SC-1 microphon-calibrator.
          • Rational Acoustics SMAART Live V.7 software + license.
Lake Controller Tour Application
OpenLakeTablet

LAKE LM44 Dual Set with Tablet PC Control.

Adjustments for Loudspeaker Management and System Control in Live Sound Applications, like FOH & System EQ.

          • 2x Lake LM44 Audio System Processors.
            Each LM 44 provides 8 × 8 AES3 digital I/O, 4 × 8 Dante networked I/O, and 4 in/4 analog I/O.
          • HP 2760P tablet PC with touch screen + stylus input ( controlling LAKE Software ).
          • W-LAN remote acces via a wireless router / antenna.
API-2500
neve-portico-ii-master-buss

API 2500 Stereo Bus Compressor.

          • The API 2500 Stereo Bus Compressor allows adjustment of sonic qualities to alter the punch and tone of the stereo mix.
          • One of the 2500’s notable qualities is its use of API’s patented THRUST circuit for a chest-hitting, punchy bottom end.

Rupert Neve Designs Portico II Master Bus Processor.

          • The ultimate dynamics, tone, and stereo field control for your 2-buss.
          • Based around the high voltage, discrete and class-A signal paths made famous in the 5088 Mixer, the Portico II Master Buss Processor is a creative tool that redefines the boundaries and limitations of traditional 2-channel compression and limiting.
          • Though originally developed for mastering applications, the MBP quickly became a favorite of mix engineers, tracking engineers, and even FOH engineers.
DENON 501C
DENON RC-F400S hot start remote

DENON 501C CD/Media Player.

          • CD player plays CD-DA (CD-Text), .wav, .mp3 and .m4a content.
          • Shockproof: play-safe thanks to the buffer memory.
          • Front USB interface for direct playback of music files from USB mass storage devices.
          • iPod or iPhone WAV, AIFF, AAC and MP3 data formats are supported.



Hot Start Remote RC-F400S.

          • immediate “hot start” of 20 audio files (jingles / samples).
          • 20 illuminated hot start buttons.
          • large LCD display.
          • Control of all DN-F400 player functions.
